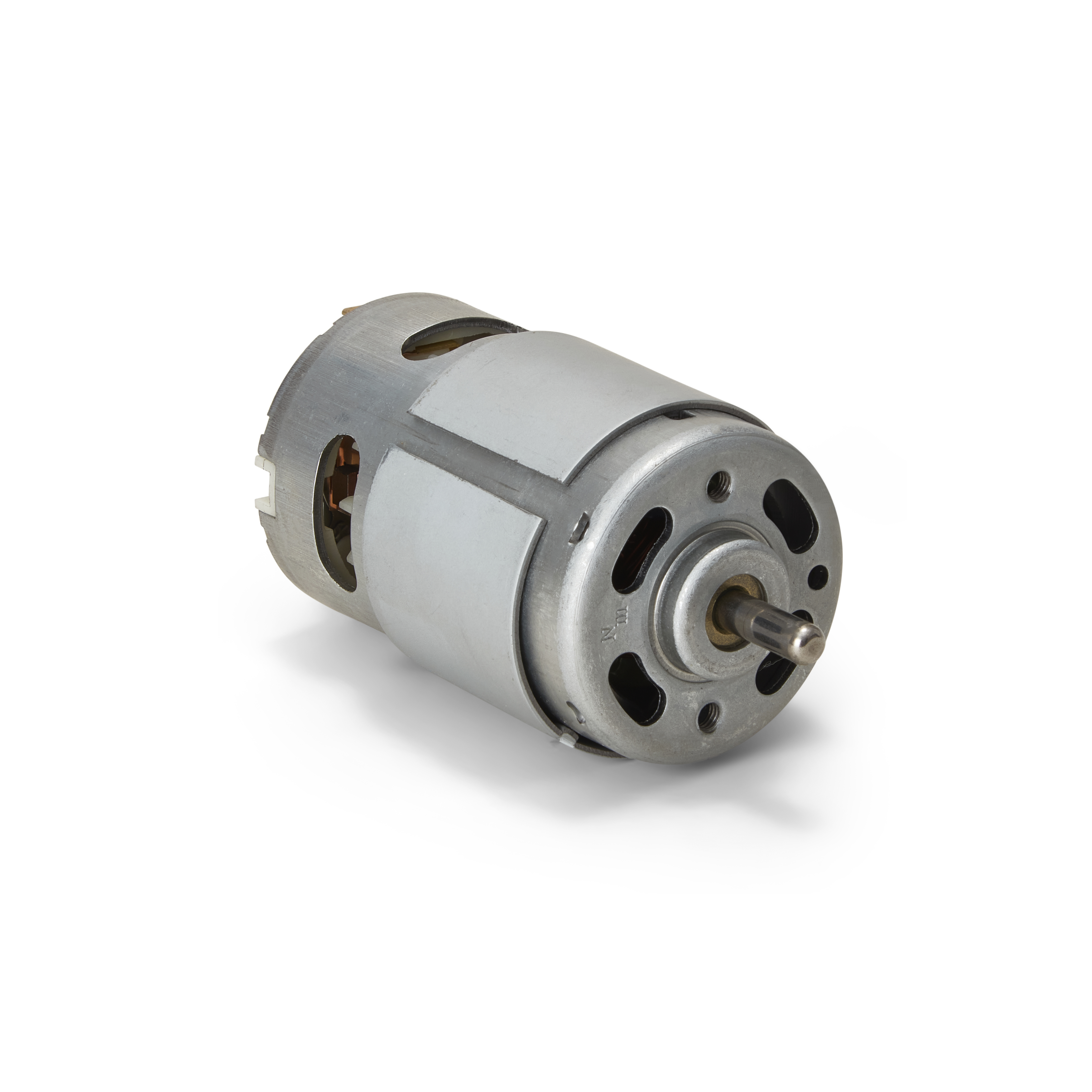

775-5520F-CC
DC-motors 24V 68.1A 18400rpm 182W
Product name: 775-5520F-CC | SKU: 15775002
Brush-commutated DC motor, direct current motor voltage of 24V, current 68.1A, rated speed 18400rpm power 182W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€55.20
≥ 5 pcs
€47.10
≥ 25 pcs
€41.50
≥ 50 pcs
€27.40
≥ 100 pcs

In stock

Voltage
24V
Diameter
45mm
Power
182W
Length
94.3mm
Nominal speed
18400rpm
Nominal torque
94.3mNm
Weight
481g
Current at maximum load
68.1A
SKU
15775002
Some of the possible customizations:
Shaft length
Shaft profile
Operating temperature -40° -- +80°
Encoder
For any inquiries regarding customizations, please contact us at:
Datasheet

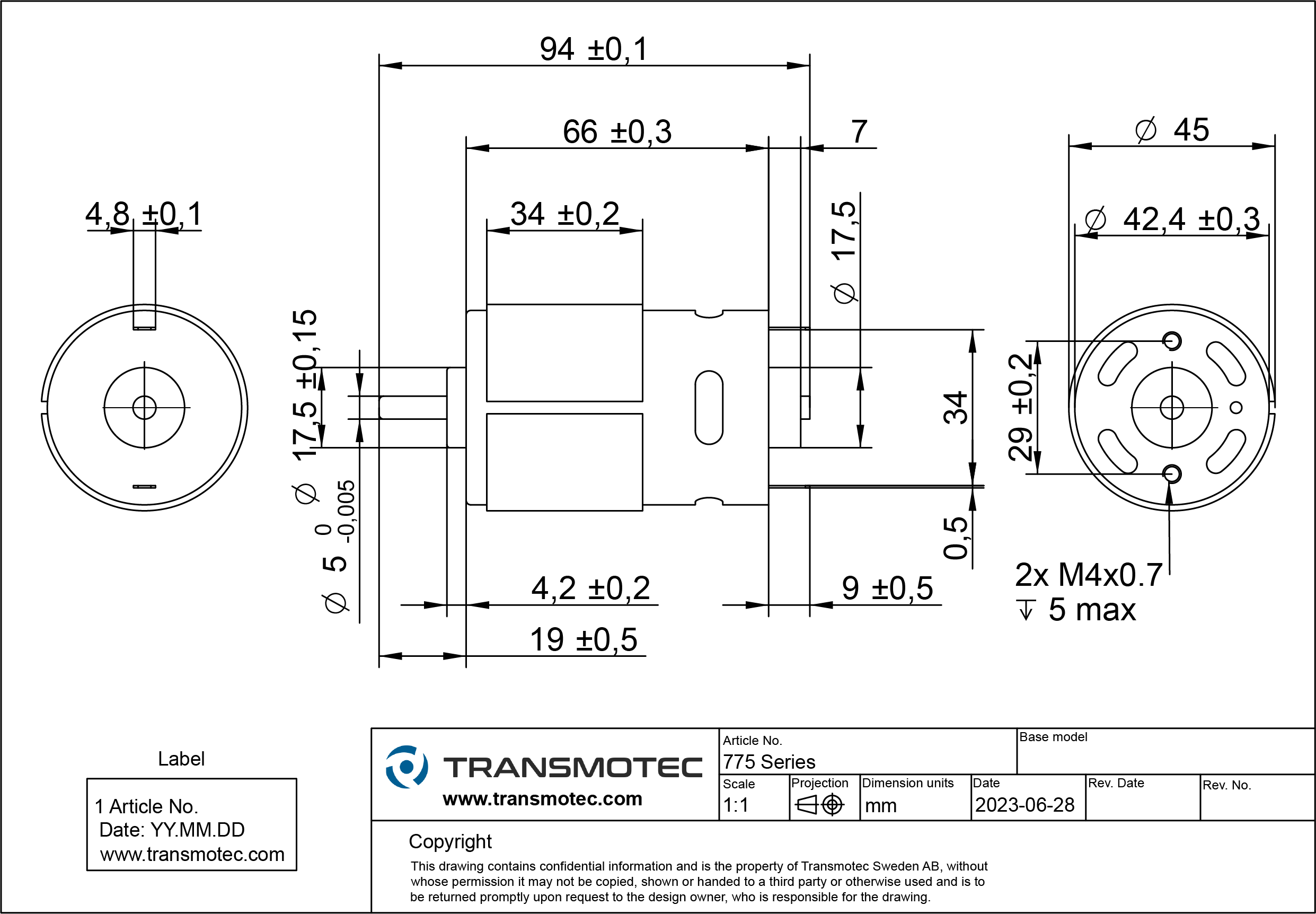

Drawing
Catalog
3D CAD (.stp)
