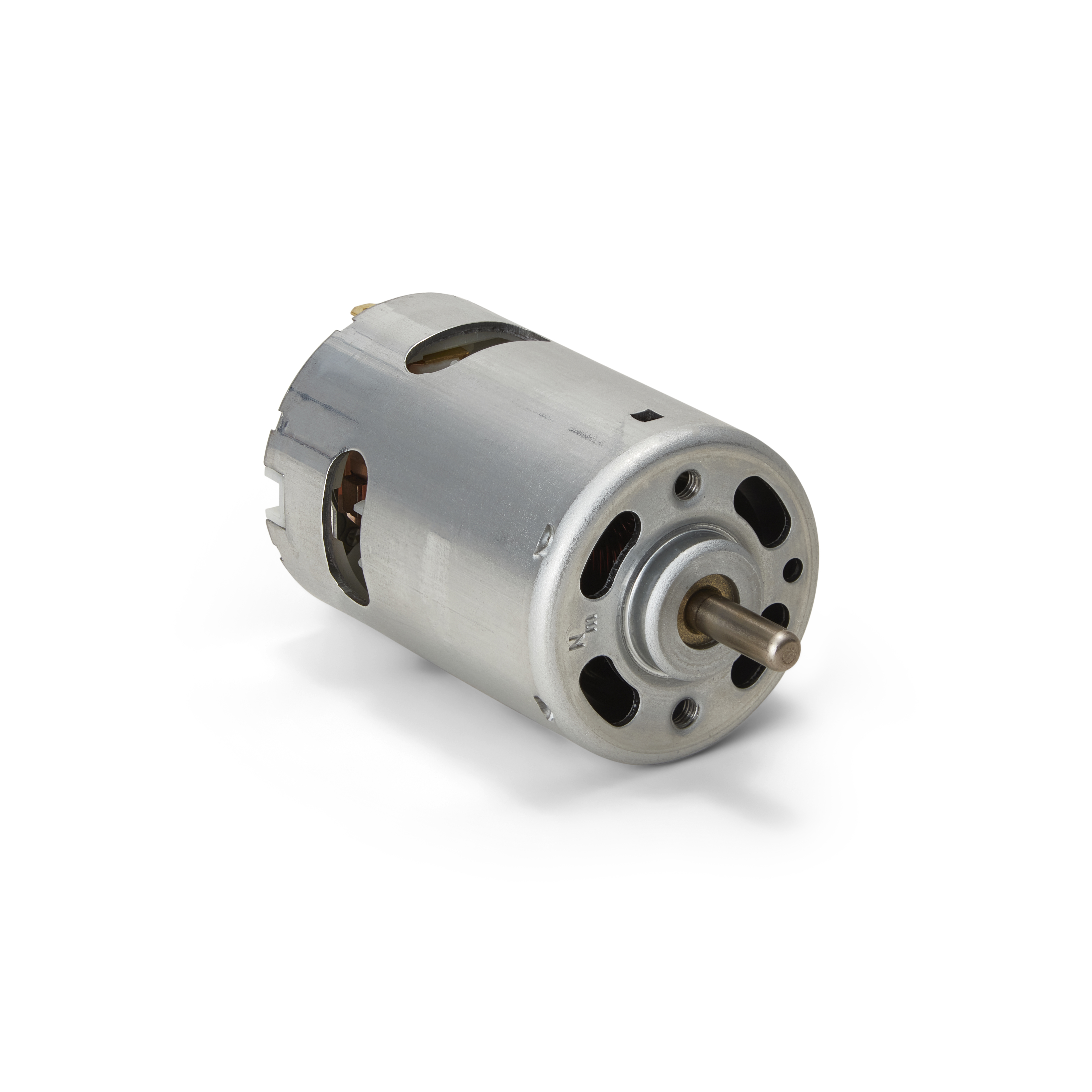

755-5027F-C
DC-motors 12VDC 29.3A 8400rpm 41W
Product name: 755-5027F-C | SKU: 15755001
Brush-commutated DC motor, direct current motor voltage of 12VDC, current 29.3A, rated speed 8400rpm power 41W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$60.30
≥ 5 pcs
$51.20
≥ 25 pcs
$43.90
≥ 50 pcs
$29.30
≥ 100 pcs

In stock

Power
41W
Voltage
12VDC
Nominal speed
8400rpm
Nominal torque
45.7mNm
Current at maximum load
29.3A
Length
45.7mm
Diameter
42.4mm
Weight
371g
SKU
15755001
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

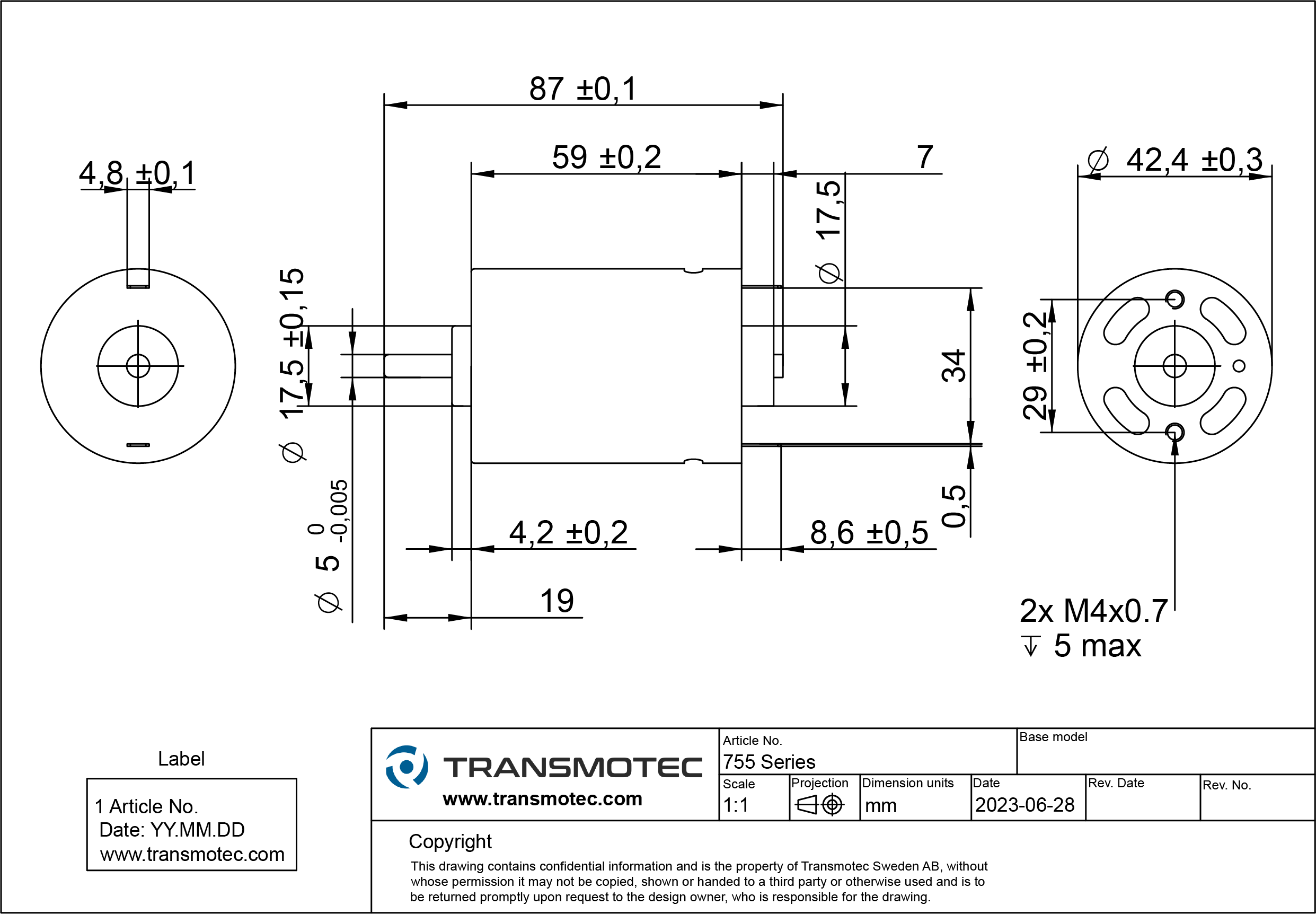

Drawing
Catalog
3D CAD (.stp)
