Stepping motors

Stepping motors of hybrid type with 0.9 degree step angle. Holding torque between 0.05-1.80 Nm. Supplied with cable connection. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.

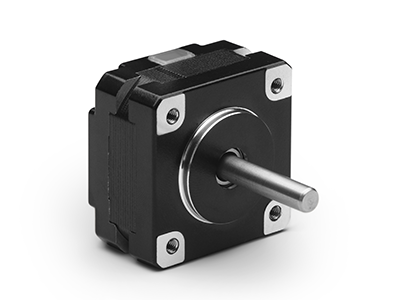

Stepping motor 0.9° 50mNm 1A 35x35mm Cable
Product name: SHW3520-09-100 | SKU: 13039110
Type
Cable
Holding torque
50mNm
Nominal current
1A
Inductance
8.5mH
Step degrees
0.9°
1+
€22.50
5+
€22.00
25+
€15.00
50+
€12.50
100+

In stock

Stepping motor 0.9° 90mNm 0.5A 35x35mm Cable
Product name: SHW3526-09-050 | SKU: 13039111
Type
Cable
Holding torque
90mNm
Nominal current
0.5A
Inductance
6.9mH
Step degrees
0.9°
1+
€24.00
5+
€23.50
25+
€16.50
50+
€14.00
100+

In stock

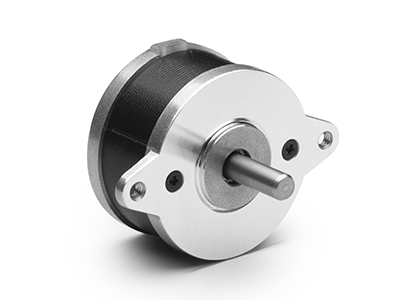

Stepping motor 0.9° 90mNm 0.8A 36x36mm Cable
Product name: SHW3620-09-080 | SKU: 13039112
Type
Cable
Holding torque
90mNm
Nominal current
0.8A
Inductance
4.8mH
Step degrees
0.9°
1+
€21.50
5+
€21.00
25+
€14.50
50+
€13.50
100+

In stock

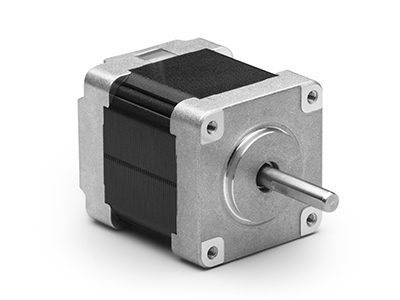

Stepping motor 0.9° 297mNm 0.28A 39x39mm Cable
Product name: SHW3944-09-028 | SKU: 13039113
Type
Cable
Holding torque
297mNm
Nominal current
0.28A
Inductance
145mH
Step degrees
0.9°
1+
€56.00
5+
€55.00
25+
€38.00
50+
€34.50
100+

In stock

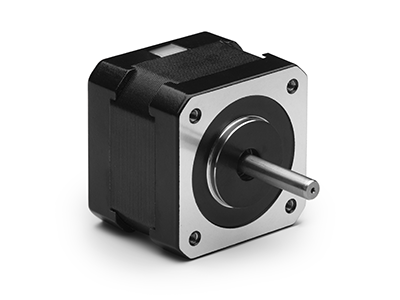

Stepping motor 0.9° 220mNm 1.33A 42x42mm Cable
Product name: SHW4234-09-133 | SKU: 13039114
Type
Cable
Holding torque
220mNm
Nominal current
1.33A
Inductance
4.2mH
Step degrees
0.9°
1+
€32.50
5+
€32.00
25+
€18.50
50+
€15.00
100+

In stock

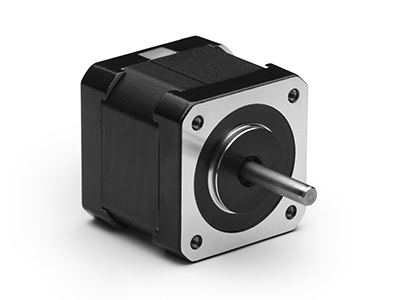

Stepping motor 0.9° 330mNm 1.68A 42x42mm Cable
Product name: SHW4240-09-168 | SKU: 13039115
Type
Cable
Holding torque
330mNm
Nominal current
1.68A
Inductance
4.1mH
Step degrees
0.9°
1+
€39.00
5+
€38.50
25+
€22.00
50+
€18.00
100+

In stock

Stepping motor 0.9° 440mNm 1.68A 42x42mm Cable
Product name: SHW4247-09-168 | SKU: 13039116
Type
Cable
Holding torque
440mNm
Nominal current
1.68A
Inductance
5mH
Step degrees
0.9°
1+
€46.00
5+
€45.50
25+
€26.00
50+
€21.50
100+

In stock

Stepping motor 0.9° 550mNm 2.8A 57x57mm Cable
Product name: SHW5741-09-280 | SKU: 13039117
Type
Cable
Holding torque
550mNm
Nominal current
2.8A
Inductance
2.2mH
Step degrees
0.9°
1+
€48.00
5+
€47.00
25+
€28.00
50+
€23.00
100+

In stock

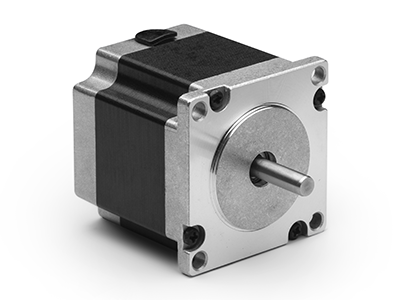

Stepping motor 0.9° 1.2Nm 2.8A 57x57mm Cable
Product name: SHW5756-09-280 | SKU: 13039118
Type
Cable
Holding torque
1.2Nm
Nominal current
2.8A
Inductance
4.5mH
Step degrees
0.9°
1+
€66.50
5+
€65.50
25+
€39.00
50+
€32.50
100+

In stock

Stepping motor 0.9° 1.8Nm 2.8A 57x57mm Cable
Product name: SHW5776-09-280 | SKU: 13039119
Type
Cable
Holding torque
1.8Nm
Nominal current
2.8A
Inductance
5.6mH
Step degrees
0.9°
1+
€96.50
5+
€95.00
25+
€41.50
50+
€46.50
100+

In stock
