Stepper motors in focus

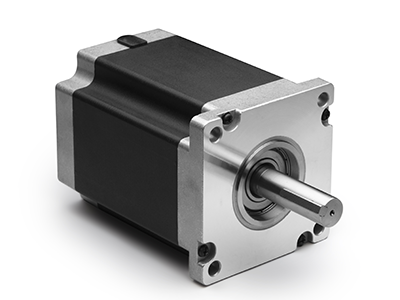

What is a stepper motor?
A stepper motor converts a series of pulses (usually square waves) into a precisely defined increment of shaft rotation – making it ideal for applications that require exact positioning without the need for an encoder or feedback.
Stepper motor linear actuators in three versions

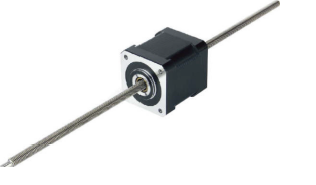

Transmotec offers three different versions of stepper motor linear actuators. The non-captive version offers exceptional flexibility with a wide selection of lead screw options in different leads, diameters and lengths. The captive version has a built-in anti-rotation mechanism that makes the screw move in and out depending on the direction of rotation – particularly suited to short strokes. The external version can be combined with both standard nuts and anti-backlash nuts, providing high repeatability even under varying loads.
Contact us to learn more about our stepper motors!
