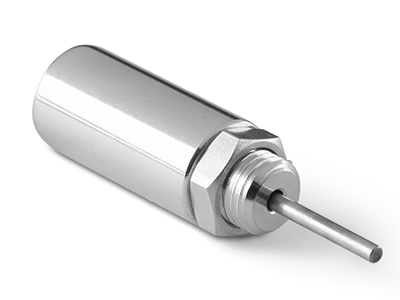

Solenoid tubular type 24VDC 1.32lbf 7W
Product name: T1939S-24V | SKU: 20193907
Solenoid tubular type voltage 24VDC force 1.32lbf stroke 0.39in power 7W. The force can be significantly increased with limited energized time and with connection to higher supply voltage. The solenoids come with a return spring, and are available in various construction types such as open, cylindrical, self-holding latching bistable and holding magnet designs. All solenoids are available in mechanical pull L or push S designs and can be customized per request. Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$77.60
≥ 5 pcs
$59.30
≥ 25 pcs
$47.30
≥ 50 pcs
$29.80
≥ 100 pcs

In stock

Power
7W
Voltage
24VDC
Profile
Circular
Length
1.55in
Diameter
0.8in
Peak force
1.32lbf
Type
Push
Weight
3.91oz
SKU
20193907
Some of the possible customizations:
Plunger length
Plunger profile
Connectors
For any inquiries regarding customizations, please contact us at:
Note

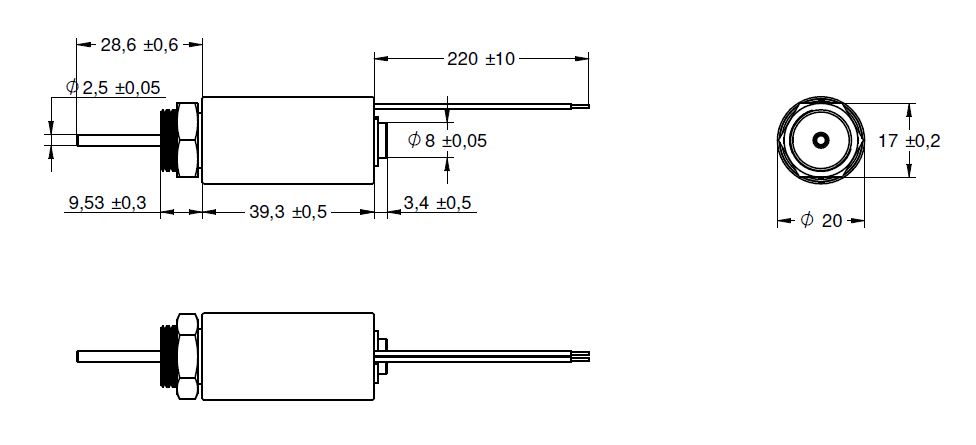

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
