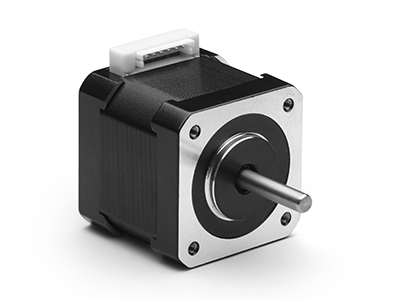

Stepping motor 1.8° 324.53lb-ft 1.68A 42x42mm Connector
Product name: SHC4248-18-168 | SKU: 13039128
Stepping motor with specifications step angle 1.8° holding torque 324.53lb-ft current 1.68A size 42x42mm connection Connector. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.
≥ 1 pcs
$47.50
≥ 5 pcs
$46.50
≥ 25 pcs
$27.50
≥ 50 pcs
$20.50
≥ 100 pcs

In stock

Type
Connector
Holding torque
324.53lb-ft
Size
1.65x1.65in
Length
1.87in
Nominal current
1.68A
Inductance
2.8mH
Resistance
1.65ohm
Step degrees
1.8°
SKU
13039128
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note

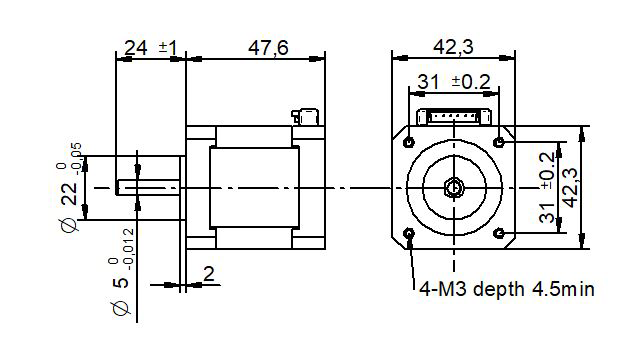

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
