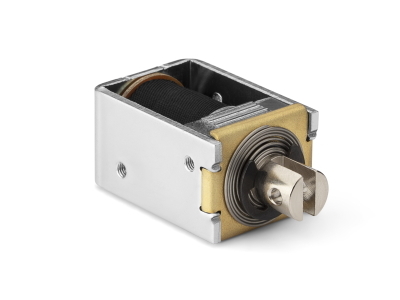

Latching solenoid 6VDC 7.84N 4W
Product name: K1037L-06V | SKU: 20103709
Latching solenoid , self holding, bistable magnet voltage 6VDC force 7.84N stroke power 4W The force can be significantly increased with limited energized time and with connection to a higher supply voltage. A latching function is achieved through a built-in permanent magnet, whose magnetism is neutralized by reversed current direction. The solenoids come with a return spring and are available in various construction types such as open, cylindrical, self-holding and holding magnet design. All solenoids are available in pull L or push S designs and can be customized as needed. Common adaptations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€58.00
≥ 5 pcs
€46.40
≥ 25 pcs
€38.70
≥ 50 pcs
€33.20
≥ 100 pcs

Available on backorder

Power
4W
Voltage
6VDC
Profile
Square
Length
37mm
Profile height
26mm
Profile width
20mm
Peak force
7.84N
Type
Pull
Weight
95g
SKU
20103709
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note

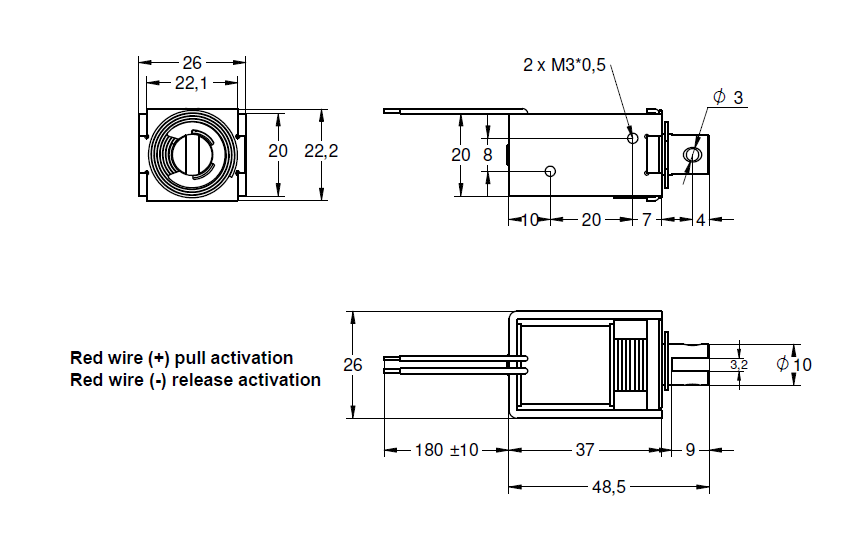

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
