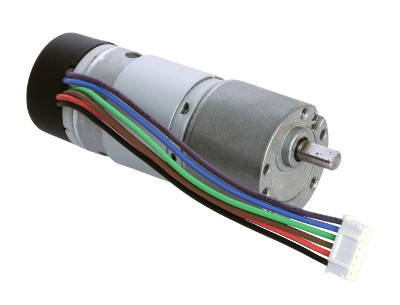

SD3039-12-100-FEC
Spur gear motor 12VDC 0.53A 56rpm 4.22W.
Product name: SD3039-12-100-FEC | SKU: 10280017
Brush-commutated spur gear DC motor, direct current motor voltage of 12VDC, current 0.53A, rated speed 56rpm power 4.22W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$123.70
≥ 5 pcs
$104.00
≥ 25 pcs
$65.80
≥ 50 pcs
$41.60
≥ 100 pcs

In stock

Power
4.22W
Voltage
12VDC
Nominal speed
56rpm
Nominal torque
294mNm
Nominal current
0.53A
Length
85mm
Diameter
30mm
Encoder
Magnetic encoder
Weight
251g
SKU
10280017
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

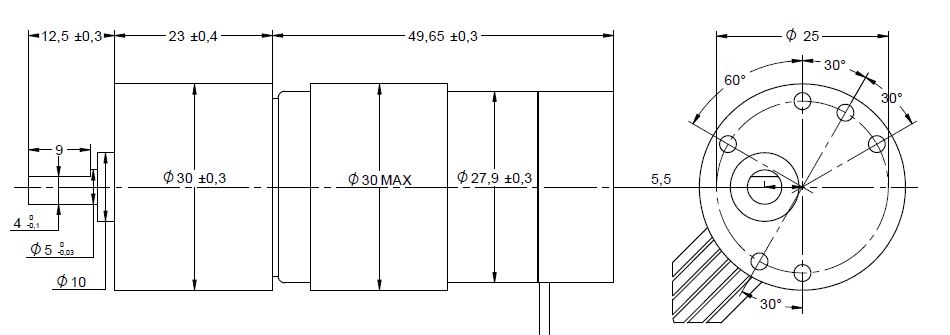

Drawing
Catalog
3D CAD (.stp)
