EM7040-24V

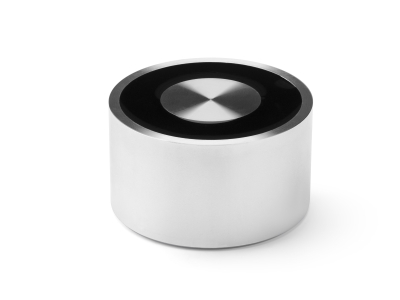

Holding solenoid 24V 70mm 19W
Productname: EM7040-24V | SKU: 20704010
Holding solenoid voltage 24V diameter 70mm power 19WThe holding force can be significantly increased with limited energized time and with connection to a higher supply voltage. All holding magnets can be customized per request Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€205.40
≥ 5 pcs
€164.30
≥ 25 pcs
€136.90
≥ 50 pcs
€117.30
≥ 100 pcs

Available on backorder

Voltage
24V
Diameter
70mm
Power
19W
Profile
Circular
Length
40mm
Weight
800g
SKU
20704010
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

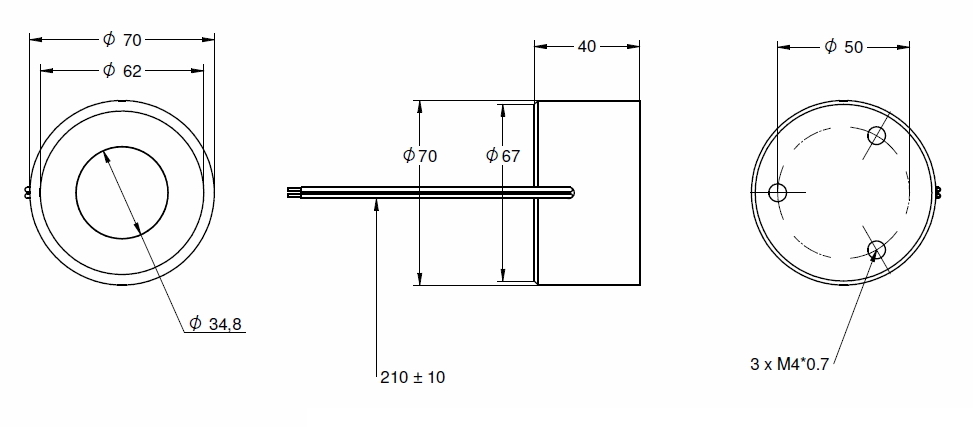

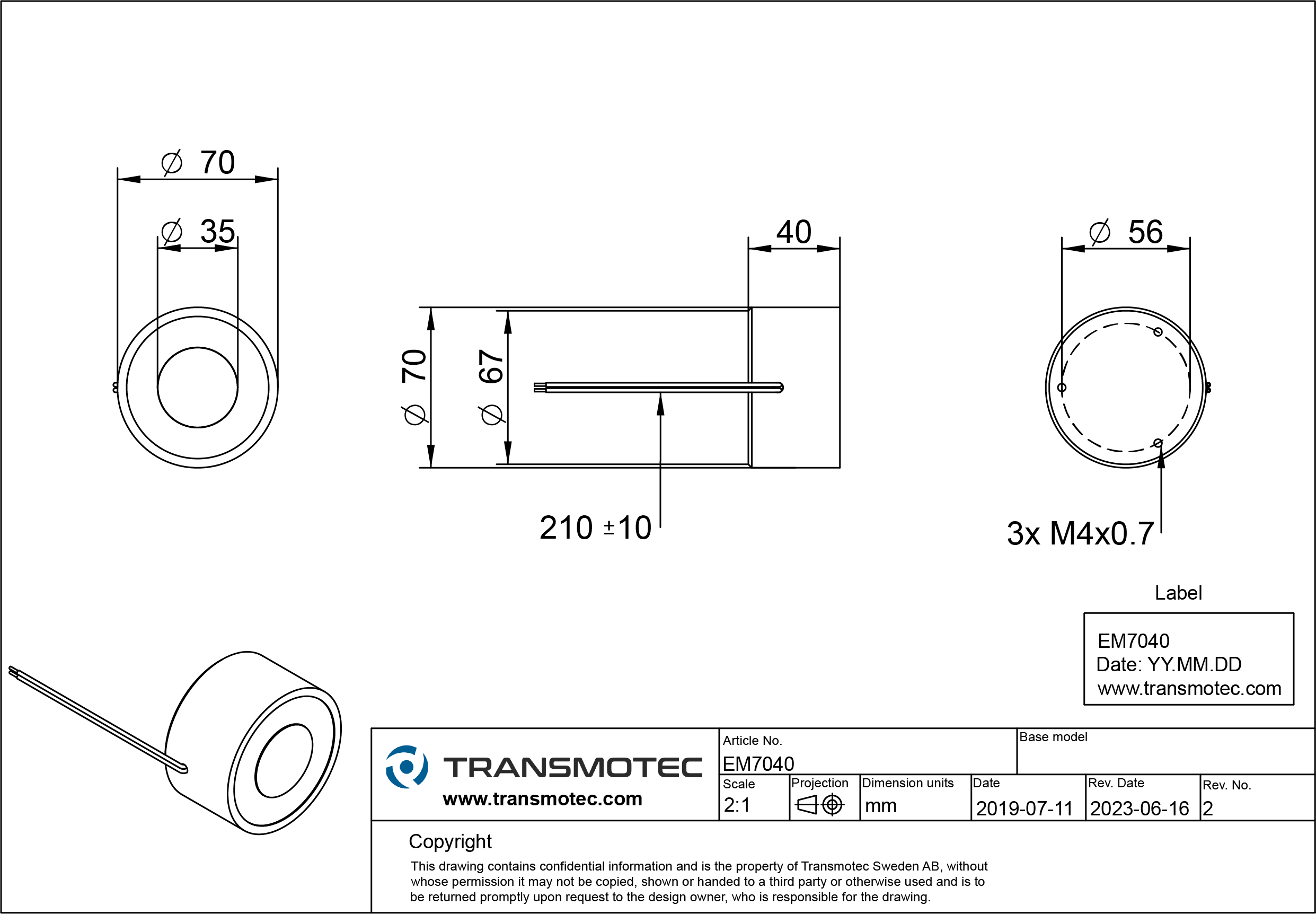

Drawing
Catalog
3D CAD (.stp)
