EM2520-12V

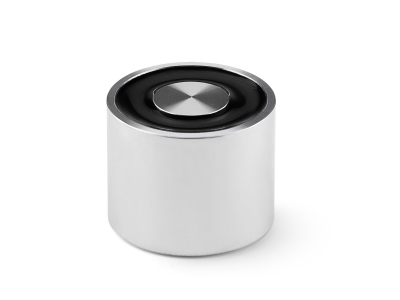

Holding solenoid 12V 25mm 4W
Productname: EM2520-12V | SKU: 20252009
Holding solenoid voltage 12V diameter 25mm power 4WThe holding force can be significantly increased with limited energized time and with connection to a higher supply voltage. All holding magnets can be customized per request Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€89.30
≥ 5 pcs
€71.40
≥ 25 pcs
€59.50
≥ 50 pcs
€51.00
≥ 100 pcs

Available on backorder

Voltage
12V
Diameter
25mm
Power
4W
Profile
Circular
Length
20mm
Weight
50g
SKU
20252009
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

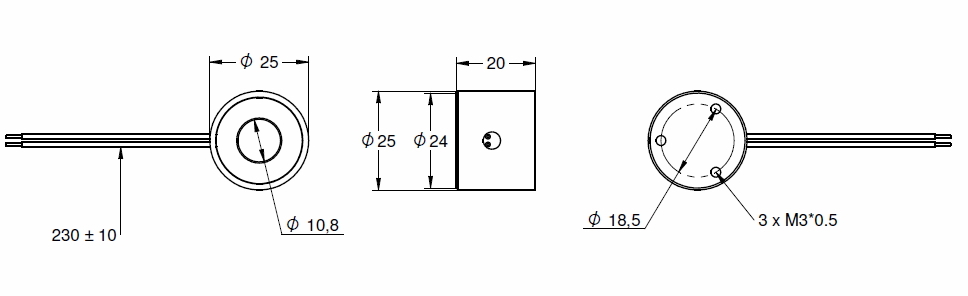

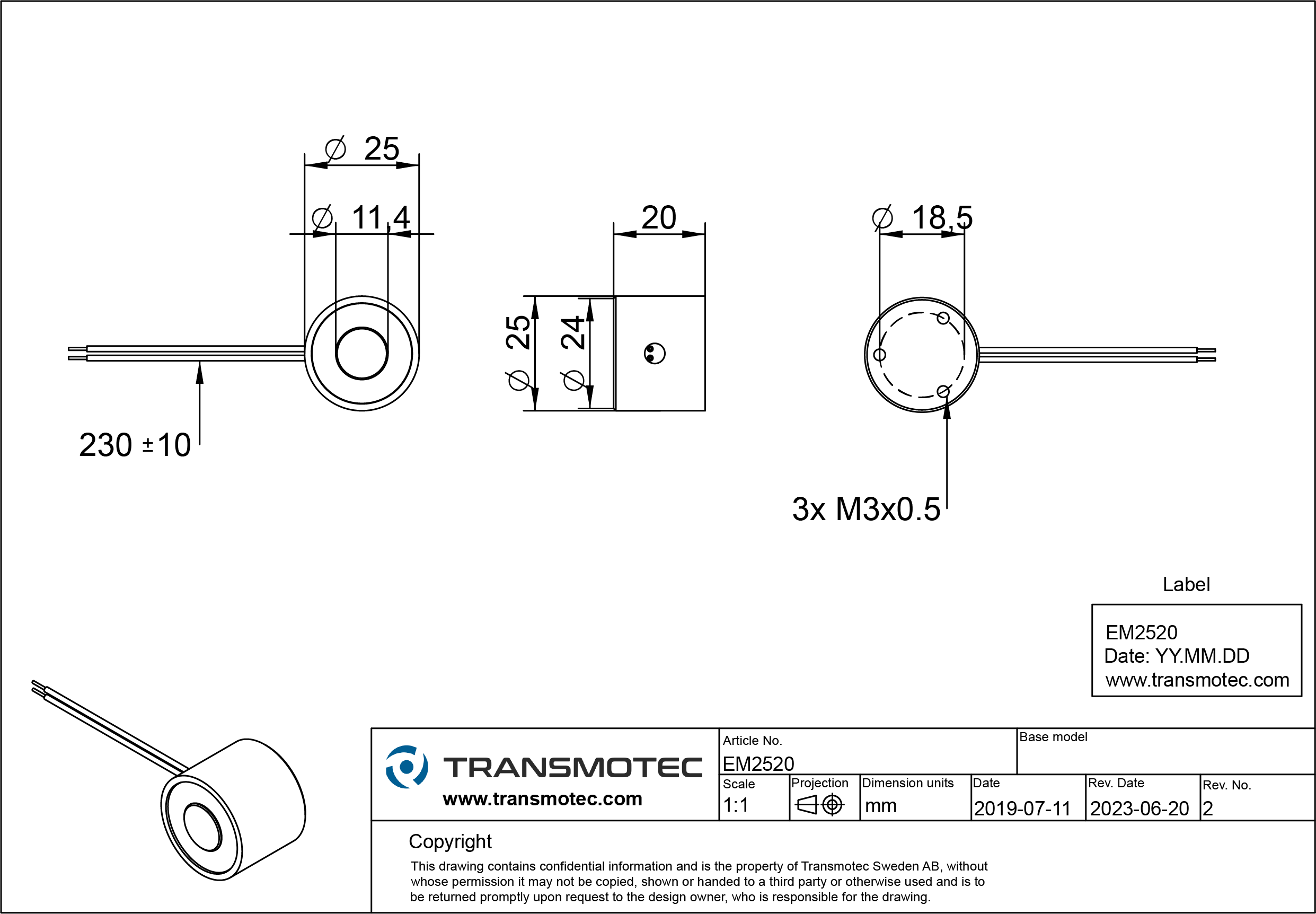

Drawing
Catalog
3D CAD (.stp)
