DLB-12-10-A-200-IP65
Linear actuator 12VDC 500N 4.4A
Product name: DLB-12-10-A-200-IP65 | SKU: 16112003
Linear actuator for direct current with voltage 12VDC force 500N current 4.4A. The actuators include a range with supply voltages between 12-24V and can, depending on the type, be supplied with encoder, potentiometer and adjustable limit switches. Accessories for mounting are sold separately. All actuators can be customized as needed. Common adjustments are stroke length, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$483.40
≥ 5 pcs
$336.80
≥ 25 pcs
$256.40
≥ 50 pcs
$232.20
≥ 100 pcs

In stock

Voltage
12VDC
Nominal current
4.4A
Feedback
No
Maximum Force
500N
Speed at maximum load
25mm/s
Stroke length
200mm
Weight
1.24kg
SKU
16112003
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

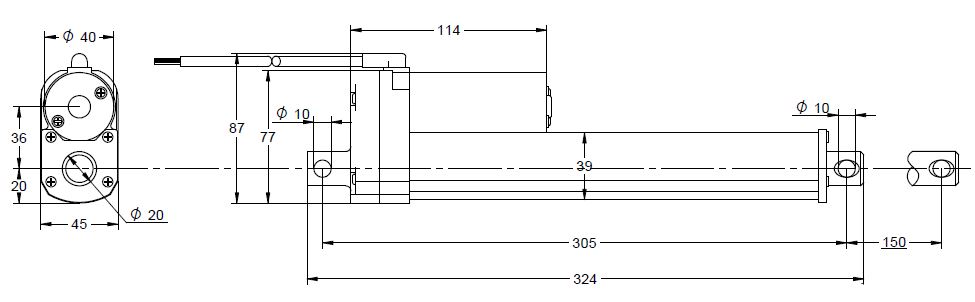

Drawing
Catalog
3D CAD (.stp)
