DLA-12-10-A-250-HS2-IP65
Linear actuator 12V 300N 3A
Productname: DLA-12-10-A-250-HS2-IP65 | SKU: 16012215
Linear actuator for direct current with voltage 12V force 300N current 3A. The actuators include a range with supply voltages between 12-24V and can, depending on the type, be supplied with encoder, potentiometer and adjustable limit switches. Accessories for mounting are sold separately. All actuators can be customized as needed. Common adjustments are stroke length, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$274.40
≥ 5 pcs
$232.80
≥ 25 pcs
$202.90
≥ 50 pcs
$134.40
≥ 100 pcs

In stock

Voltage
12V
Maximum Force
300N
Feedback
Hall sensor
Speed at maximum load
25mm/s
Stroke length
250mm
Current at maximum load
3A
Weight
1.41kg
SKU
16012215
Some of the possible customizations:
Stroke length (min. 25.4mm – max. 500mm)
Limit switch output signals
Control box & hand controller
Noise level (min. = 55dB)
Dimension tolerances
Vertical or horizontal mounting holes
Front connector material/type/dimensions
Motor pinion material
Voltage (36VDC, 48VDC)
Connectors
Cabling
For any inquiries regarding customizations, please contact us at:
Datasheet

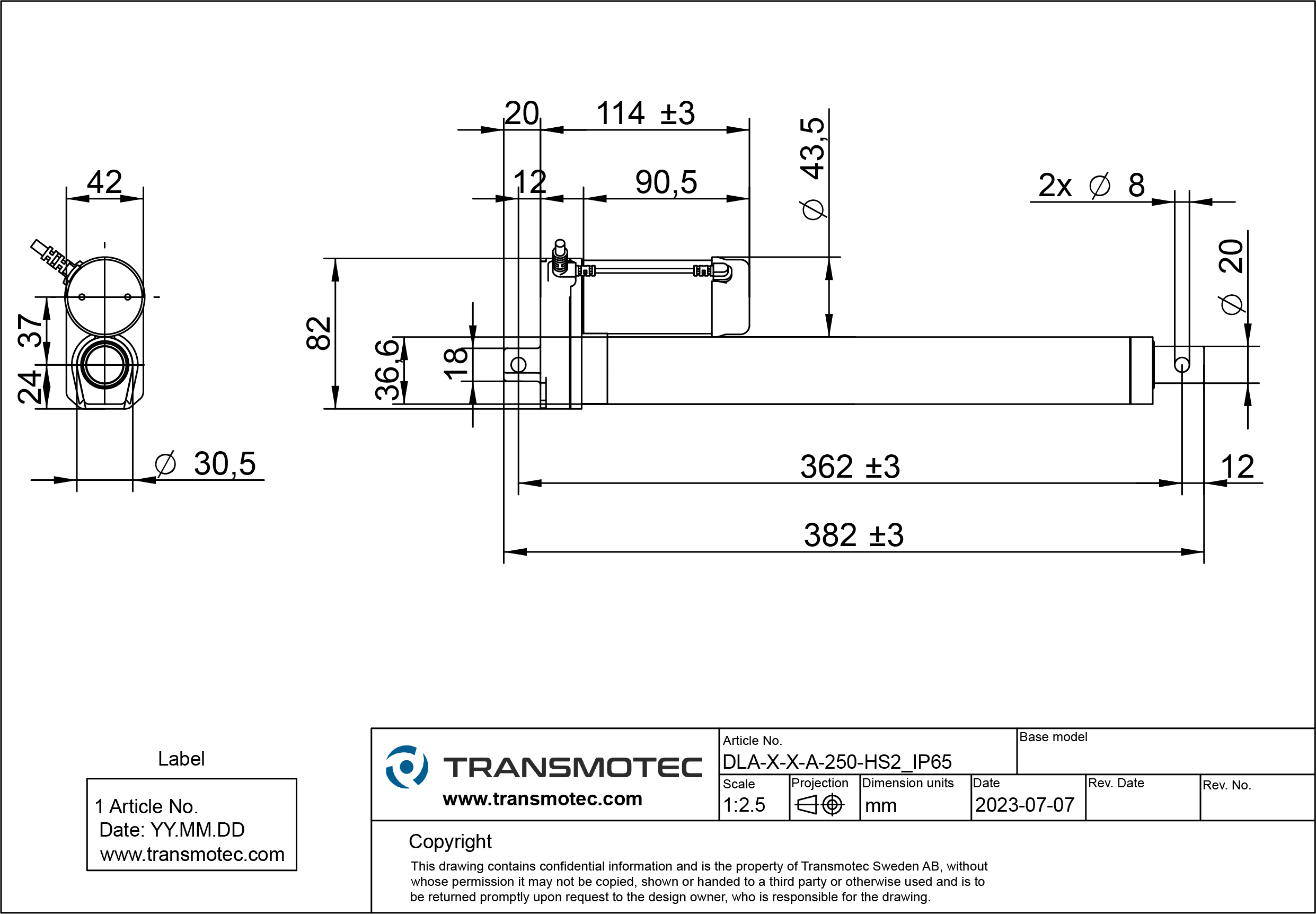

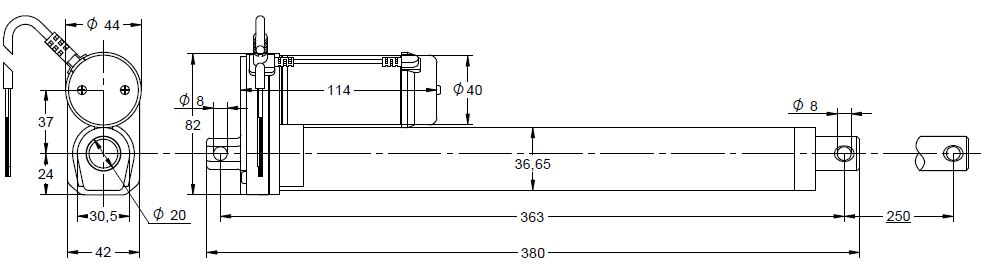

Drawing
Catalog
3D CAD (.stp)
