B86112-24

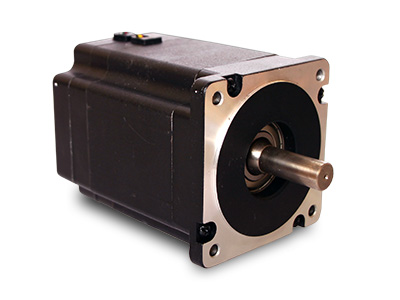

Brushless motor 24V 23A 3100rpm 393W
Productname: B86112-24 | SKU: 13042093
Brushless DC motor, BLDC motor voltage 24V current 23A speed 3100rpm power 393W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€580.90
≥ 2 pcs
€518.70
≥ 5 pcs
€367.20
≥ 10 pcs
€252.70
≥ 25 pcs

In stock

Voltage
24V
Diameter
0mm
Nominal speed
3100rpm
Nominal torque
1.2Nm
Power
393W
Length
112mm
Current at maximum load
23A
Profile height
86mm
Profile width
86mm
Weight
3.67kg
SKU
13042093
Some of the possible customizations:
Shaft length
Shaft profile (D-shaft or circular)
Gearbox
Connectors
Encoder
For any inquiries regarding customizations, please contact us at:
Datasheet

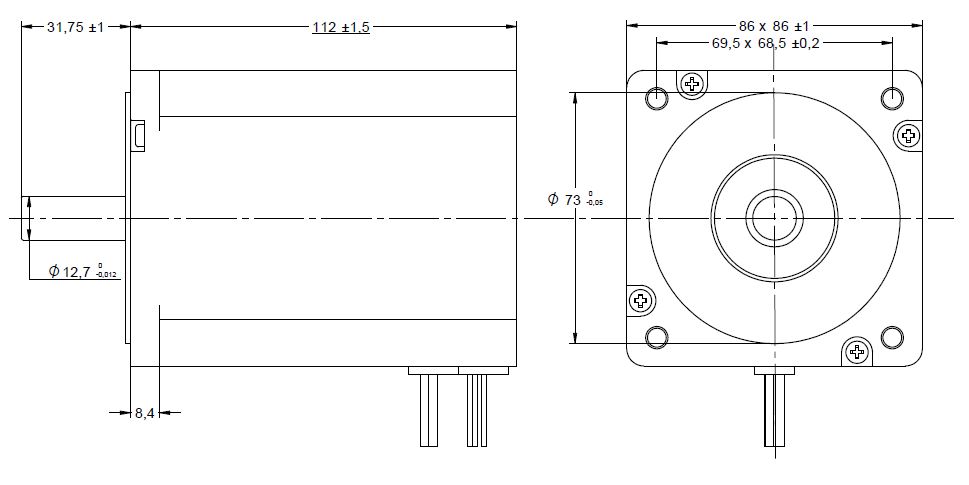

Drawing
Catalog
3D CAD (.stp)
