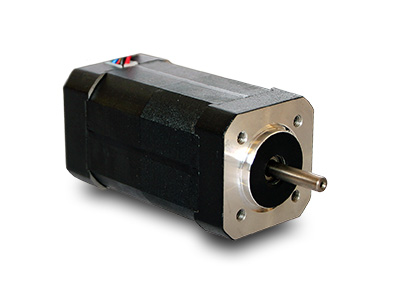

B4280-24
Brushless motor 24V 4.7A 4000rpm 78W
Productname: B4280-24 | SKU: 13042052
Brushless DC motor, BLDC motor voltage 24V current 4.7A speed 4000rpm power 78W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€252.70
≥ 5 pcs
€212.80
≥ 25 pcs
€151.50
≥ 50 pcs
€99.20
≥ 100 pcs

In stock

Voltage
24V
Diameter
0mm
Nominal speed
4000rpm
Nominal torque
220mNm
Power
78W
Length
80.3mm
Current at maximum load
4.7A
Profile height
42mm
Profile width
42mm
Weight
812.5g
SKU
13042052
Some of the possible customizations:
Shaft length
Shaft profile (D-shaft or circular)
Gearbox
Connectors
Encoder
For any inquiries regarding customizations, please contact us at:
Datasheet
Catalog
3D CAD (.stp)
