AIS-120W-230-SC
Speed adjustable AC-gear motors 220-230VAC, current 0.95-1A, rated speed at 90-1200rpm and power 120W.
Product name: AIS-120W-230-SC | SKU: 22300013
Induction AC-gear motors, alternating current motors voltage of 220-230VAC, current 0.95-1A, rated speed 90-1200rpmpower 120W. Transmotec sell a broad range of geared AC motors in standard and customized configurations. These speed adjustable AC motors are designed for applications that require the motor speed to be set at various speeds. The motors have a small analogue generator built to the rear shaft that is connected to a separate speed controller unit.Transmotec is the ideal supplier source specially to instrument and apparatus builders. We keep a high number of motors in stock for immediate delivery. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$205.13
≥ 5 pcs
$172.13
≥ 25 pcs
$150.13
≥ 50 pcs
$144.63
≥ 100 pcs

Available on backorder

Power
120W
Voltage
220-230VAC
Frequency
50Hz
Phases
1
Nominal speed
90-1200rpm
Nominal torque
330-750mNm
Nominal current
0.95-1A
Size
90x90mm
Type
Speed adjustable
Weight
3.5kg
SKU
22300013
Profile
Square
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet

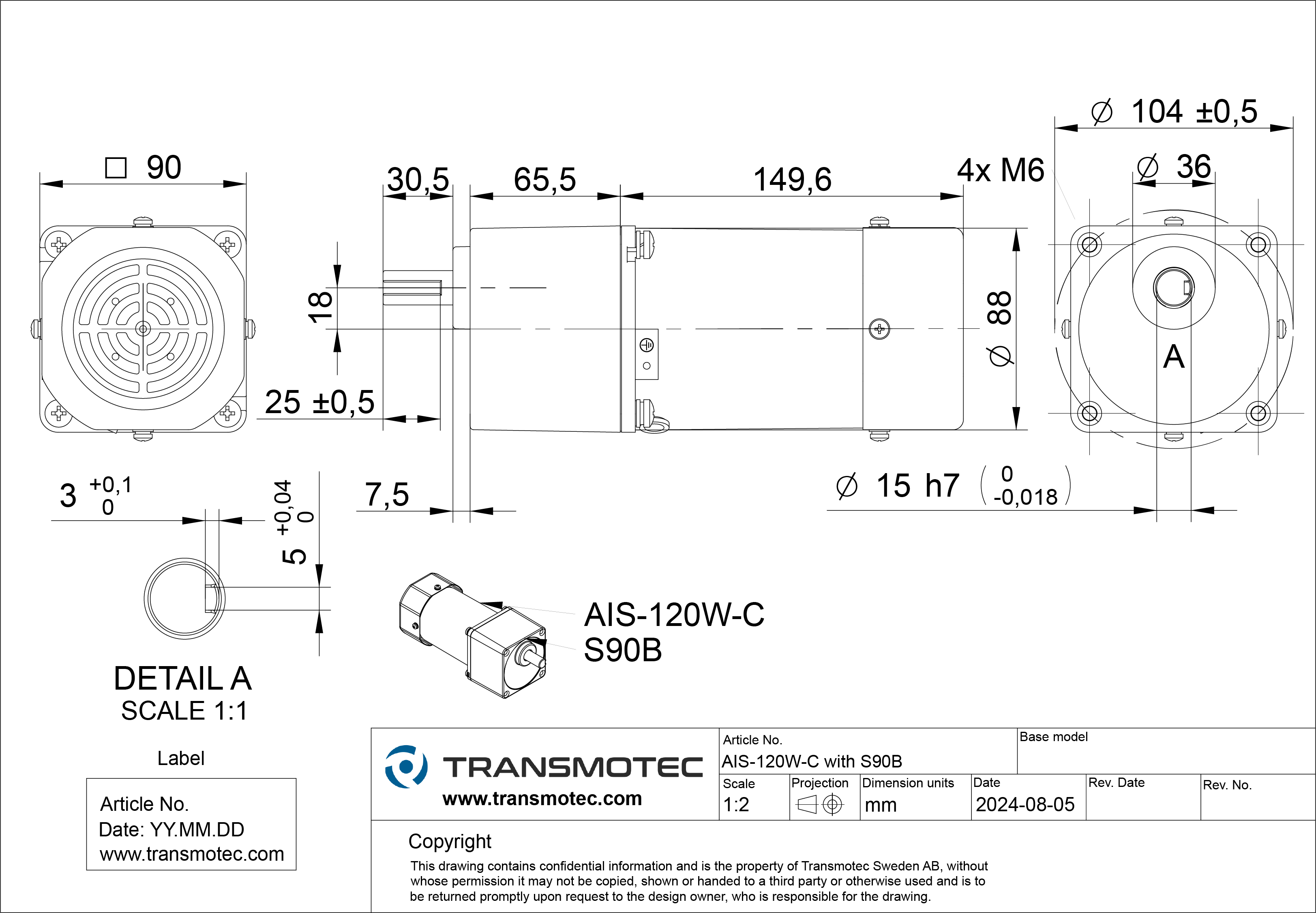

Drawing
Catalog
3D CAD (.stp)
